The TRIDENT 1.2T Excavator features multiple attachments, expandable track, swing boom, quick hitch, extra-length dozer blade, 12 HP diesel engine, and multiple hydraulic outputs, ensuring versatile and efficient operation.
Combo deal includes:
- 400mm & 500mm bucket
- 200mm trench bucket
- 800mm mud bucket
- 50mm ripper & rake
- Post hole digger with 200mm auger
- Stick Rake
- Quick hitch
- Hydraulic thumb grab
Add-On Option:
- Rock breaker, for $2,100 inc. GST.
Key features:
Expandable track
Swing boom
Hydraulic outputs for multiple attachments
Quick hitch
Hydraulic outputs
Dozer blade (extra length)
Mechanical fuel pump (No engine ECU)
3 years parts warranty
Engine/Hydraulic:
Engine model: 192F
Rate power: 12HP/8.2 kw/3,600 rpm
Displacement: 0.499 L
Flow rate: 21.6 L/min
Max. torque: 23.8 N.m
1 cylinder air cooled diesel engine
Operating Parameters:
Operating pressure: 18MPa
Vehicle working weight: 1,200kg
Travel speed: 1.84 km/h
Gradeability: 30%
Swing speed: 7 rpm
Ground specific pressure: 23.43kPa
Bucket maximum digging force: 800 kg
Maximum digging force of stick: 600 kg
Minimum swing radius: 1,535mm
Maximum digging radius: 2,781mm
Maximum digging depth: 1,625mm
Maximum digging height: 2,407mm
Maximum unloading height: 1,758mm
Dimensions:
Wheelbase: 1,100mm
Total length of track: 1,260mm
Boom length: 1,471mm
Stick length: 961mm
Track width: 180mm
Track height: 290mm
Chassis width: 800/932 mm
Counterweight ground clearance: 425mm
Platform ground clearance: 376mm
Platform back turning radius: 480mm

TRIDENT 1.2T EXCAVATOR COMBO DEAL (NEWLY UPGRADED)

WEICHAI LOVOL 8T steel tracked excavator with hydraulic quick hitch
Key features:
A/C cabin
Heavy duty chassis with steel track (rubber pads available)
High flow rate 159L/M
Yanmar direct injection engine, no computer, easy to service
High quality hydraulic pump
Pilot controls
Dozer blades
Touch screen control panel
Hydraulic outputs for multiple attachments
ENGINE/HYDRAULIC
Engine model YANMAR 4TNV98
Rate power 44.4kW/2100rpm
Displacement 3.32L
Maximum Torque/Speed 237Nm/1400rpm
4 cylinder
Flow rate 159L/min
Main Safety Valve Pressure 28MPa
Fuel Tank 160L
Hydraulic Tank 100L
Engine Oil 5-9.4L
OPERATING PARAMETERS
Vehicle working weight 7800kg
Travel speed 2.7-4.3km/h
Gradeability 35%
Swing speed 11.5rpm
Ground Pressure 35.1kPa
Bucket digging force 56kN
Arm digging force 38kN
Maximum traction force 61kN
Maximum digging radius 6335mm
Maximum digging depth 4050mm
Maximum vertical digging depth 3670mm
Maximum digging height 7150mm
Maximum dumping height 5030mm
Maximum Lifting height of dozer blade 375mm
Maximum Digging depth of dozer blade 295mm
EXCAVATOR DIMENSIONS
Bucket capacity 0.32m3
Shipping length 6100mm
Shipping ground length 3665mm
Boom height 2575mm
Shipping width 2275mm
Cab height 2650mm
Ground clearance of counter weight 820mm
Minimum ground clearance 378mm
Tail turning radius 1830mm
Length to center of rollers 2130mm
Track length 2770mm
Track gauge 1700mm
Track shoe width 450mm
Hood height 1750mm
Rotary platform width 2275mm
Boom length 3708mm
Arm length 1650mm
Track section number ?each side?38
Track roller number 5
Dozer blade height 425mm

TRIDENT 8T EXCAVATOR WITH HYDRAULIC QUICK HITCH

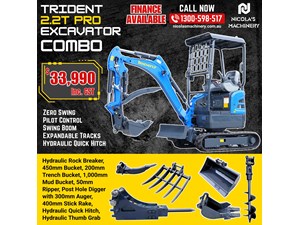

The TRIDENT 2.2T Excavator delivers powerful, versatile performance for any job site. Featuring zero swing, pilot controls, expandable tracks and a swing boom, it offers superior maneuverability. Equipped with a 3-cylinder water cooled Kubota engine for great power and fuel efficiency. With quick hitch, and multiple hydraulic outputs, it's ready for efficient operation. New features like side mirrors, a beacon light, and a protection grill provide added safety and visibility, ensuring you can work with confidence.
Combo deal includes:
- 450mm bucket
- 350mm trench bucket
- 1,200mm mud bucket
- 50mm ripper
- Post hole digger with 300mm auger
- 400mm stick rake
- Quick hitch
- Hydraulic thumb grab
- Hydraulic rock breaker
Key Features:
Zero swing
Pilot controls
Swing boom
Expandable track
3-cylinder water cooled Kubota D902 diesel engine
Hydraulic outputs for multiple attachments
Mechanical fuel pump (No engine ECU)
Engine & Hydraulic:
Engine model: Kubota D902-EF08
Rate power: 15.5kw / 20HP / 3600 rpm
Displacement: 898cc
Intake: Naturally Aspirated
Starting: Electric
Fuel type: Diesel
Cooling type: Water cooled
Operating Parameters:
Vehicle working weight: 2,200kg
Travel speed: 3.4 km/h
Swing speed: 10.5 rpm
Minimum swing radius: 1,580mm
Maximum digging depth: 2,270mm
Maximum dumping height: 2,550mm
Max. vertical digging depth: 1,910mm
Max. digging distance: 3,950mm
Maximum Lifting height of dozer blade: 280mm
Maximum Digging depth of dozer blade: 190mm
Dimensions:
Gross weight: 2,200kg
Overall width: 1,000mm - 1,300mm (adjustable)
Overall height: 2,450mm
Total length of track: 1,590mm
Total length with dozer: 1,720mm
Track height: 360mm
Platform ground clearance: 415mm
Platform back turning radius: 680mm

TRIDENT 2.2T EXCAVATOR COMBO DEAL (NEWLY UPGRADED)

TRIDENT 3.8T ROPS excavator plus 300mm, 450mm, 650mm and 1000mm Bucket, Thumb Grab, Ripper and Hydraulic Quick Hitch for $56,990 inc GST
Key features:
Zero swing
Pilot controls
Swing boom
Yanmar engine
Auto engine rev match
Touch screen control panel
Mechanical fuel pump (No engine ECU)
Hydraulic outputs for multiple attachements
ENGINE/HYDRAULIC
Engine model YANMAR 3TNV88F
Rate power 24.41HP/18.2kW/2200rpm
Displacement 1.642L
3 cylinder direct injection EPA Tier 4 Final/Europe Stage V Emission
Flow rate 96.8L/min
OPERATING PARAMETERS
Vehicle working weight 3800kg
Travel speed 2.4/4.4 km/h
Gradeability 30%
Swing speed 0-9rpm
Ground Pressure 32kPa
Bucket digging force 30.4kN
Arm digging force 18.2kN
Maximum digging radius 5345mm
Maximum digging depth 3075mm
Maximum vertical digging depth 2640mm
Maximum digging height 4910mm
Maximum digging distance 5500mm
Maximum dumping height 3545mm
Maximum Lifting height of dozer blade 375mm
Maximum Digging depth of dozer blade 370mm
EXCAVATOR DIMENSIONS
Bucket capacity 0.12 m3
Bucket width 650mm
Overall length 4880mm
Ground contact length(transportation) 3360mm
Overall height (to top of boom) 1880mm
Overall width 1740mm
Overall height (to top of cab) 2550mm
Counter weight ground clearance 595mm
Ground clearance 295mm
Tail Swing radius 860mm
Crawler wheel base 1670mm
Track length 2155mm
Track gauge 1440mm
Track width 1740mm
Shoe width 300mm
Bonnet height 1550mm
Revolving frame width 1550mm
Distance from swivel center to tail 860mm

TRIDENT 3.8T EXCAVATOR WITH 350MM, 500MM, 700MM AND 1000MM BUCKET, THUMB GRAB, RIPPER, QUICK HITCH Zero swing, Pilot controls, Swing boom, Yanmar engine

WEICHAI LOVOL 6T steel tracked excavator with hydraulic quick hitch
Key features:
A/C cabin
Heavy duty chassis with steel track (rubber pads available)
High flow rate 159L/M
Yanmar direct injection engine, no computer, easy to service
High quality hydraulic pump
Pilot controls
Dozer blades
Touch screen control panel
Hydraulic outputs for multiple attachments
ENGINE/HYDRAULIC
Engine model YANMAR 4TNV94L
Rate power 36.2kW/2100rpm
Displacement 3.054L
Maximum Torque/Speed 198Nm/1400rpm
4 cylinder
Flow rate 159L/min
Main Safety Valve Pressure 24.5MPa
Fuel Tank 120L
Hydraulic Tank 90L
Engine Oil 5.5-10.5L
OPERATING PARAMETERS
Vehicle working weight 5800kg
Travel speed 2.4-4.2km/h
Gradeability 35%
Swing speed 11rpm
Ground Pressure 32.33kPa
Bucket digging force 50kN
Arm digging force 31kN
Maximum traction force 49.4kN
Maximum digging radius 6065mm
Maximum digging depth 3660mm
Maximum vertical digging depth 2655mm
Maximum digging height 5405mm
Maximum dumping height 3770mm
Maximum Lifting height of dozer blade 400mm
Maximum Digging depth of dozer blade 560mm
EXCAVATOR DIMENSIONS
Bucket capacity 0.23m3
Shipping length 6090mm
Shipping ground length 3760mm
Boom height 2300mm
Shipping width 1950mm
Cab height 2660mm
Ground clearance of counter weight 700mm
Minimum ground clearance 330mm
Tail turning radius 1700mm
Wheel tread 2010mm
Track length 2550mm
Track gauge 1480mm
Track shoe width 400mm
Hood height 1635mm
Rotary platform width 1830mm
Boom length 3100mm
Arm length 1500mm
Track section number ?each side?40
Track roller number 5
Dozer blade height 360mm

TRIDENT 6T EXCAVATOR WITH HYDRAULIC QUICK HITCH A/C cabin Heavy duty chassis with steel track (rubber pads available) High flow rate 159L/M Yanmar direct injection engine

TRIDENT 3.8T A/C cabin excavator plus 300mm, 450mm, 650mm and 1000mm Bucket, Thumb Grab, Ripper and Hydraulic Quick Hitch for $59,990 inc GST
Key features:
A/C cabin
Zero swing
Pilot controls
Swing boom
Bluetooth & Radio media system
Yanmar engine
Auto engine rev match
Touch screen control panel
Mechanical fuel pump (No engine ECU)
Hydraulic outputs for multiple attachements
ENGINE/HYDRAULIC
Engine model YANMAR 3TNV88F
Rate power 24.41HP/18.2kW/2200rpm
Displacement 1.642L
3 cylinder direct injection EPA Tier 4 Final/Europe Stage V Emission
Flow rate 96.8L/min
OPERATING PARAMETERS
Vehicle working weight 3800kg
Travel speed 2.4/4.4 km/h
Gradeability 30%
Swing speed 0-9rpm
Ground Pressure 32kPa
Bucket digging force 30.4kN
Arm digging force 18.2kN
Maximum digging radius 5345mm
Maximum digging depth 3075mm
Maximum vertical digging depth 2640mm
Maximum digging height 4910mm
Maximum digging distance 5500mm
Maximum dumping height 3545mm
Maximum Lifting height of dozer blade 375mm
Maximum Digging depth of dozer blade 370mm
EXCAVATOR DIMENSIONS
Bucket capacity 0.12 m3
Bucket width 650mm
Overall length 4880mm
Ground contact length(transportation) 3360mm
Overall height (to top of boom) 1880mm
Overall width 1740mm
Overall height (to top of cab) 2550mm
Counter weight ground clearance 595mm
Ground clearance 295mm
Tail Swing radius 860mm
Crawler wheel base 1670mm
Track length 2155mm
Track gauge 1440mm
Track width 1740mm
Shoe width 300mm
Bonnet height 1550mm
Revolving frame width 1550mm
Distance from swivel center to tail 860mm

TRIDENT 3.8T A/C CABIN EXCAVATOR, 4 X SIZES BUCKETS, THUMB GRAB, RIPPER AND HYDRAULIC QUICK HITCH A/C cabin, Yanmar engine, Zero swing, Pilot controls, Swing boom

The Trident 1.8T Excavator combines compact design with reliable performance for versatile applications. Featuring zero swing, pilot controls, expandable tracks, and a swing boom, it ensures agility on any job site. Powered by a Yanmar 3TNV70 engine, it delivers efficient operation without an ECU. Supplied with multiple attachments, including a hydraulic thumb grab and rock breaker, its ready for a variety of tasks.

TRIDENT 2025 NEW MODEL 1.8T EXCAVATOR COMBO DEAL
